saint moritz plus

Air-ducting pellet stove

Air-ducting pellet stove Saint Moritz plus: style and elegance enriched by precious majolica handmade with fine workmanship in relief. Equipped with the motorised fan technology PELLETPOWER® (Idra model) heat exchanger THERMOCORE® and simplified cleaning system EASY CLEANING. Available in versions, Silent, Air, Plus and Idra.
Heatable area
103 .
  • White-Bordeaux
  • White-Turtledove
  • White-Beige
  • Bordeaux
  • Turtledove
  • Beige
  • White



1 - Programming control panel, with remote control
2 - Precious handmade majolica handmade by master craftsmen
3 - Practical food warming plate in hygienic glass (Optional: Dinner)
4 - Sliding top access to the pellet tank
5 - Cast iron and glass inlayed firebox door

Every uniti s tested for one hour in the factory Our products don’t incur additional cost for adjustments or testing Simplified cleaning system Heat exchanger Thermocore® External rotor room fan is guaranteed for 4 years Low energy consumption Higher heat accumulation only 36 decibels of noise Thermosilent system Warm air filtring system Hot plate Air ducting product External primary air input Madaly

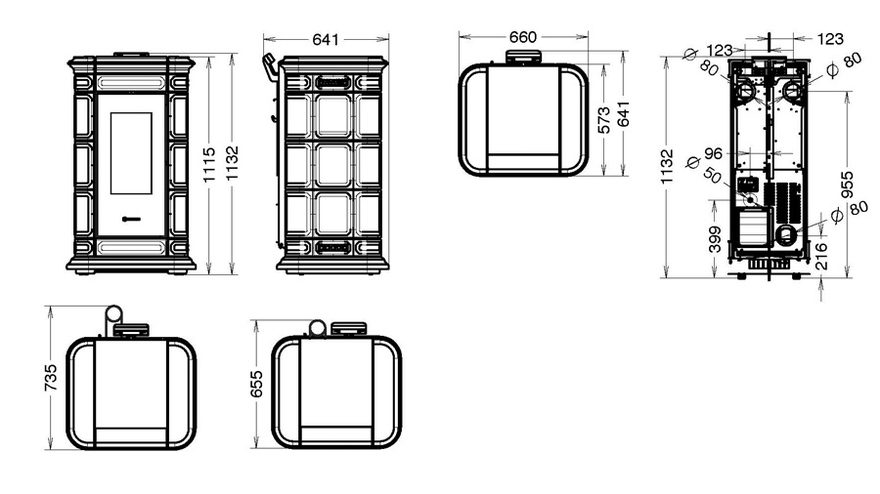

Dimensions
  • thermorossi_dimension_saint_moritz_plus
Technical data
DIMENSIONS (HXWXD)    1132x660x641
WEIGHT (kg)    182
HEATABLE AREA (m²)*a*c    107
EFFICIENCY UP TO MAX (%)*a    93,0%
ENERGY CLASS    A+
POWER TO THE HEART (kW)*a    3,8 - 13,2
RATED POWER (kW)*a    3,5 - 11,8
POWER TO THE WATER (kW)*a     -
RADIATION (kW)*a     -
HOURLY PELLET CONSUMPTION (kg/h)*a    0,8 - 2,7
WOOD HOURLY CONSUMPTION (kg/h)*a     -
PELLET HOPPER CAPACITY (kg)*a    19,0
WARM AIR DUCTING    SI
MAXIMUM SINGLE DUCTING OUTLET (m)    -
PATENTED BURNER PELLETPOWER®    -
ROOM VENTILATION    SI
PRIMARY AIR FROM OUTSIDE    SI
CO EMISSIONS (mg/m³; 13% of O2)*a    57
CO EMISSIONS (mg/m³; 10% of O2)*a    -
DUST EMISSIONS (mg/m³; 13% of O2)*a    8,5
DUST EMISSIONS (mg/m³; 10% of O2)*a    -
SILENCE (dB)    36
REMOTE CONTROL    -
RADIO CONTROL WITH ROOM TEMPERATURE THERMOSTAT    OPT
WEEKLY PROGRAMMER (3 DAILY LIGHTING)    SI
«SMART INFO» FUNCTION    SI
SYSTEM CIRCULATING PUMP    -
EXPANSION TANK    -
OVER PRESSURE VALVE    SI
FLUE GASEXHAUST DIAMETER (mm)    80
MIN. FLUE DRAUGHT PRESSURE (Pa)    10
ELECTRIC CONSUMPTION (Watt)    70-270
HIGH TEMPERATURE SAFETY THERMOSTAT    SI
*A Emissions and performance data may change according to the fuel used. The values of pellet products have been obtained by using certified fuel according to EN 14961-2 A1-A2 norm. Wood logs products values may vary according to the type and quality of the wood logs used.
*B Provisional data under certification
*C IMPORTANT: when calculating the volume of the “Heated area” some relevant aspects must be considered: insulation of the building (Energy Class), position of the heater, climatic area and more aspects that can affect the values of performance. Reported data have been calculated on the base of roof not higher than 3 mts.
The manufacturer reserves the right to make changes without previous notice.
