Zen O

Wood stove

Space-saving wood burning stove, with simple lines and a minimal appearance, to create a relaxing environment and form a deep connection with the surrounding environment. The wide fire vision, superior to its category, the large enameled oven, and the SMOKE BY PASS device, make this stove a precious and unique object. Extractable compartment for tools storage in the bottom part.

Heatable area
43 - 53 - 69 m².

1 - Enamelled oven with soapstone base (HxWxD - 289x321x240mm)
2 - Smoke by-pass technology: reduces the smoke outlet to the living zone during wood load
3 - Secondary air regulation device
4 - Cool touch door handle
5 - Cast iron firebox (HxWxD - 448x364x251mm)
6 - Primary air regulation device

DETAILS

VIDEO

SMOKE BY-PASS

Smoke by-pass drastically reduces the smoke output into the room with every wood charge, with healthy effect for the whole family. The device keeps the efficiency constant and simplifies extraordinary cleaning operations.

See on YouTube

Dimensions

Technical data

DIMENSIONS (HXWXD) 1436x613x405

WEIGHT (kg) 206

HEATABLE AREA (m²) 43 - 53 - 69

EFFICIENCY UP TO MAX (%) 86,5% - 86,3% - 86,0%

ENERGY CLASS A+

POWER TO THE HEART (kW) 5,5 - 6,8 - 9,0

RATED POWER (kW) 4,8 - 5,9 - 7,7

POWER TO THE WATER (kW) -

RADIATION (kW) 4,8 - 5,9 - 7,7

WOOD HOURLY CONSUMPTION (kg/h) 1,3 - 1,6 - 2,0

WARM AIR DUCTING OPT

MAXIMUM SINGLE DUCTING OUTLET (m) -

ROOM VENTILATION OPT

PRIMARY AIR FROM OUTSIDE SI

CO EMISSIONS (mg/m³; 13% of O2) 362 - 331 - 283

CO EMISSIONS (mg/m³; 10% of O2)

DUST EMISSIONS (mg/m³; 13% of O2) 16 - 15 - 13

DUST EMISSIONS (mg/m³; 10% of O2)

SILENCE (dB) -

SYSTEM CIRCULATING PUMP -

EXPANSION TANK -

OVER PRESSURE VALVE SI

FLUE GASEXHAUST DIAMETER (mm) 130

MIN. FLUE DRAUGHT PRESSURE (Pa) -12

ELECTRIC CONSUMPTION (Watt) -

HIGH TEMPERATURE SAFETY THERMOSTAT -

Downloadable docs

Manuale Serie ZEN_ENG

Report 15a BV-G

Report BlmSchV Zen 4,8

Report BlmSchV Zen 5,9

Report BlmSchV Zen 7,7

Report CE

Report DK Zen 4,8

Report DK Zen 5,9

Report DK Zen 7,7

Report Ecodesign Zen 4,8

Report Ecodesign Zen 5,9

Report Ecodesign Zen 7,7

Zen O

DETAILS

AUTOMATIC DOOR CLOSING KIT

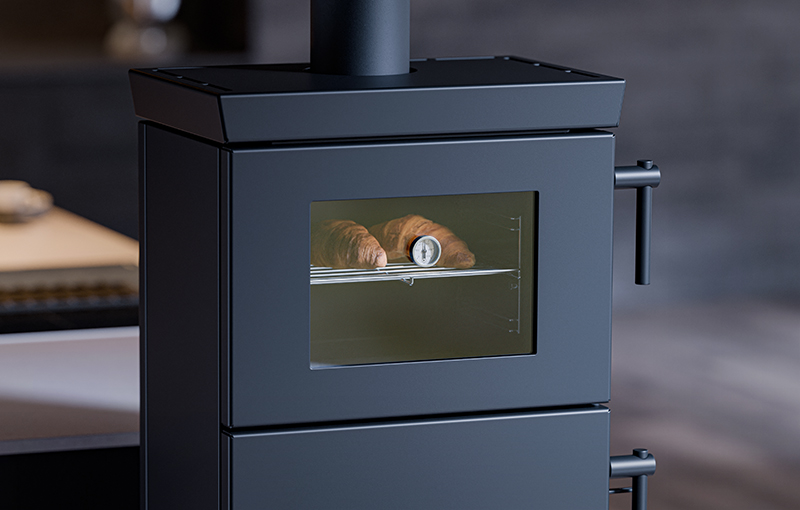

Vano Forno_ZEN O
