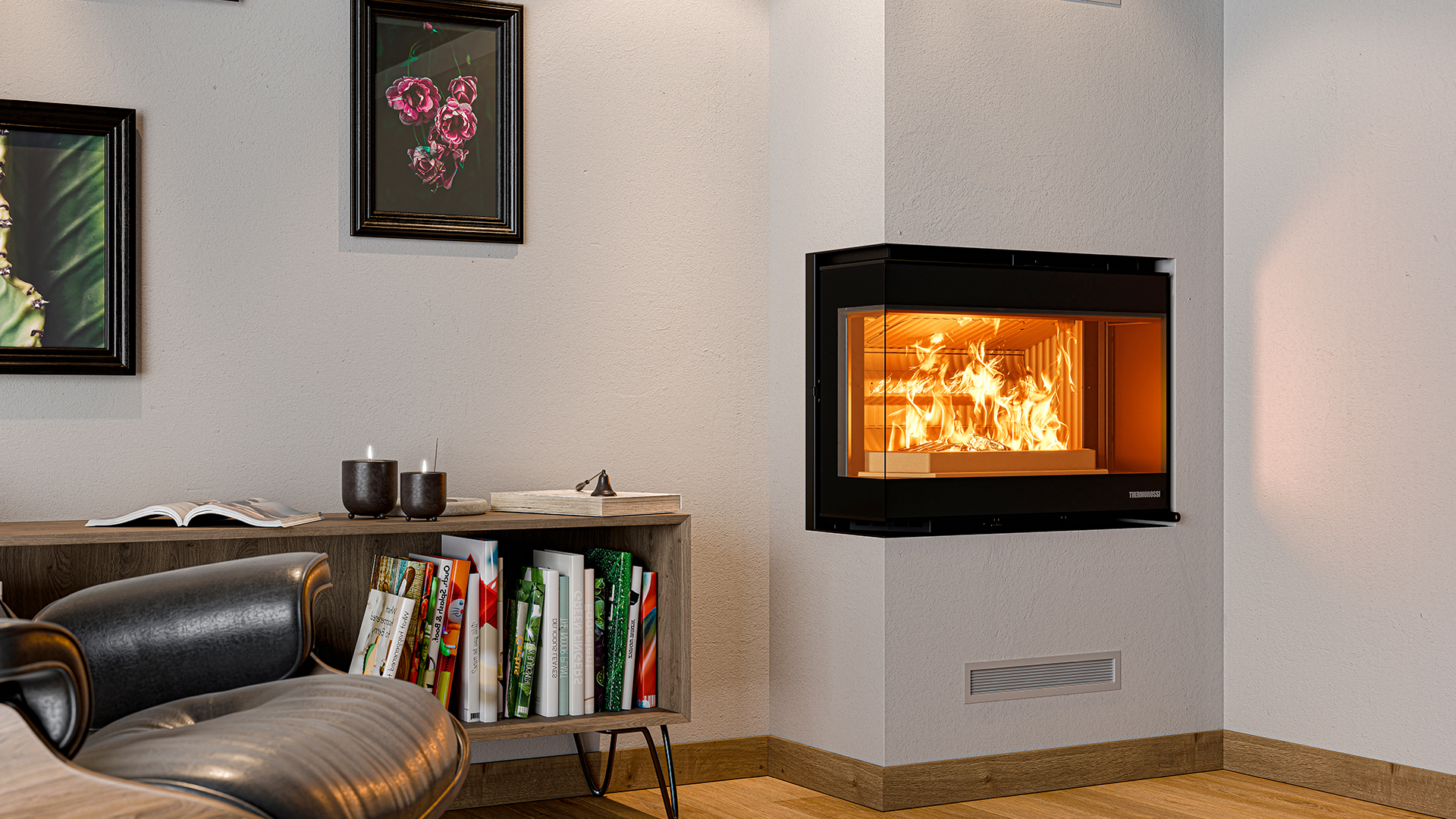

Panorama Angolare DX

Ventilated, air-ducting and natural convection wood insert
It is the perfect combination between a stove and a fireplace as it boasts the economic advantages of a stove without renouncing the charm of a three-sided fireplace. Thanks to its versatility, it is the perfect solution for those looking to install a finished fireplace stove without having to resort to expensive plasterboard work. Equipped with a Fullscreen glass to maximise the view of the fire on three sides. Available with natural convection, it can be ventilated and ducted by inserting the Airbox4 kit (optional).
Heatable area
95 m².

panorama-540-angolare_540x400

1 - Fullscreen technology to maximise the view of the fire. (HxW 32x69 cm front - 32x16 cm side)
2 - Secondary and tertiary air, glass self-cleaning system
3 - Stainless steel and cast iron heat exchanger
4 - Smoke exhaust Ø 130 mm
5 - Control to orient and channel ventilation at the 2 upper vents
6 - Possibility of obtaining combustion air from outside Ø 60 mm
7 - Ventilation kit with 2 thermostat axial motors
8 - Break-resistant combustion chamber made entirely from cast iron (HxWxD - 33x56,5x36 cm)
9 - Primary air
10 - Extractable ash pan
11 - Reversible firebox door
12 - Flush design handle

Simplified cleaning system External rotor room fan is guaranteed for 4 years Air ducting product Madaly External primary air input elevati_spessori_36x36 Low energy consumption Smoke by pass thermorossi_plus_airbox_36x36 Fullscreen_36x36

DIMENSIONS

panorama_panorama-angolare

TECHNICAL DATA

DIMENSIONS (HxWxD)    540x690x485
WEIGHT (kg)    131
HEATABLE AREA (m²)(PANORAMA 11 - 8 - 6)    95 - 71 - 51
EFFICIENCY UP TO MAX (%)(PANORAMA 11 - 8 - 6)    85,5% - 87,4% - 83,9%
ENERGY CLASS (SCALE A++/G)    A+
POWER TO THE HEART (kW)(PANORAMA 11 - 8 - 6)    12,5 - 9,0 - 6,8
RATED POWER (kW)(PANORAMA 11 - 8 - 6)    10,6 - 7,9 - 5,7
POWER TO THE WATER (kW)     -
RADIATION (kW)     -
HOURLY PELLET CONSUMPTION (kg/h)    -
WOOD HOURLY CONSUMPTION (kg/h)(PANORAMA 11 - 8 - 6)     2,89 - 2,07 - 1,56
PELLET HOPPER CAPACITY (kg)    -
WARM AIR DUCTING    OPT
MAXIMUM SINGLE DUCTING OUTLET (m)    2
PATENTED BURNER PELLETPOWER®    -
ROOM VENTILATION    OPT
PRIMARY AIR FROM OUTSIDE    SI
CO EMISSIONS (mg/m³; 13% di O2)(PANORAMA 11 - 8 - 6)    160 - 228 - 348
CO EMISSIONS (mg/m³; 10% di O2)    -
DUST EMISSIONS (mg/m³; 13% di O2)(PANORAMA 11 - 8 - 6)    9 - 17 - 18
DUST EMISSIONS (mg/m³; 10% di O2)    -
SILENCE(dB)    36,00
WEEKLY PROGRAMMER (3 DAILY LIGHTING)    -
SMART INFO FUNCTION    -
SYSTEM CIRCULATING PUMP    -
EXPANSION TANK    -
OVER PRESSURE VALVE    -
FLUE GASEXHAUST DIAMETER (mm)    130
MIN. FLUE DRAUGHT PRESSURE (Pa)    -10
ELECTRIC CONSUMPTION (Watt)    -
HIGH TEMPERATURE SAFETY THERMOSTAT    -
*A Emissions and performance data may change according to the fuel used. The values of pellet products have been obtained by using certified fuel according to EN 14961-2 A1-A2 norm. Wood logs products values may vary according to the type and quality of the wood logs used.
*C IMPORTANT: when calculating the volume of the “Heated area” some relevant aspects must be considered: insulation of the building (Energy Class), position of the heater, climatic area and more aspects that can affect the values of performance. Reported data have been calculated on the base of roof not higher than 3 mts.
The manufacturer reserves the right to make changes without previous notice.
